What is Spacecraft Multilayer Insulation?

Managing extreme temperatures is a critical aspect of successful missions. Spacecraft multilayer insulation, MLI, is engineered specifically to address these challenges by providing essential thermal protection. This sophisticated technology uses multiple layers of reflective materials to control the internal thermal environment effectively, safeguarding sensitive equipment and maintaining structural integrity. Quest Thermal Group, a pioneer in this field, continues to lead advancements in spacecraft multilayer insulation, enhancing the performance and reliability of missions through innovative insulation solutions.

Overview of Spacecraft Multilayer Insulation

spacecraft multilayer insulation

Spacecraft multilayer insulation comprises several layers, including reflective films and materials. These reflective films are typically made from aluminized materials such as polyimide or polyester, selected for their robust reflective properties and ability to withstand severe conditions. Spacer materials, in the past consisting of lightweight fabrics like polyester netting or glass fiber mats, are crucial as they keep the reflective layers separated, thus preventing conductive heat transfer which can significantly impact thermal stability. Quest’s advanced MLI uses discrete low thermally conductive spacers to separate radiant barriers and support various loads.

How It Functions

The core function of spacecraft multilayer insulation is to reduce radiant and conductive heat transfer between the spacecraft, often cryogenic propellant tanks in the vehicle, and the harsh environment. It achieves this through its multiple reflective surfaces that reflect thermal radiation away from the craft and low thermal conductance separators or spacers between the layers. In the vacuum of space, where convection is absent, thermal transfer occurs via radiation and conduction. The multilayer design with its radiant barrier layers and spacers effectively reduce radiant and conductive heat transfer, maintaining the internal temperatures or cryogenic propellant tank temperatures, to within desired limits.

Benefits

Integrating spacecraft multilayer insulation into design offers numerous advantages:

  • Reduced boil-off losses of cryogens: cryogens such as liquid hydrogen, liquid oxygen and liquid Helium are used as propellants or to maintain very low temperatures for sensitive detectors.
  • Protection of Sensitive Equipment: It contain delicate instruments and electronics that require specific thermal conditions to operate effectively. It helps maintain these conditions, ensuring optimal functionality and longevity of onboard systems.
  • Energy Efficiency: Proper thermal management through MLI, it reduces the reliance on onboard heating or cooling systems, which are often significant energy consumers. This efficiency is crucial, especially for long-duration missions where energy conservation is paramount.
  • Enhanced Structural Integrity: Repeated thermal cycling—exposure to extreme heat followed by extreme cold—can weaken structural materials over time. Spacecraft multilayer insulation stabilizes these temperature variations, thus protecting the structural integrity.

Quest Thermal Group’s Innovations in Spacecraft Multilayer Insulation

spacecraft multilayer insulation

Quest Thermal Group’s contributions to MLI technology are substantial. We focus on enhancing the thermal performance and durability of the systems while minimizing their weight. This is particularly important in aerospace applications where every gram counts. Our innovative approaches include the use or our proprietary discrete spacers, novel vapor cooling methods, load bearing structural MLI, and lightweight spacer-supported vacuum shells.

Practical Applications of Spacecraft Multilayer Insulation in Space Missions

The versatility of spacecraft multilayer insulation makes it essential for a wide range of missions:

multilayer insulation for spacecraft
  • Satellites: Whether for communication, Earth observation, or scientific research, satellites rely heavily on spacecraft multilayer insulation to protect their sensitive electronic components from the thermal extremes.
  • Manned Spacecraft: Human missions, such as those to the International Space Station or planned missions to the Moon and Mars, depend critically on effective thermal management systems. MLI ensures that the habitat modules remain within habitable temperature ranges.
  • Interplanetary Probes: As these probes travel through space to different celestial bodies, they encounter varying thermal environments that can drastically affect instrument performance and data integrity. Spacecraft multilayer insulation is pivotal in ensuring these instruments remain functional.

Extending the Frontier of Space Exploration with Advanced Insulation

As exploration ventures further and missions become more complex, the role of spacecraft multilayer insulation becomes increasingly significant. Quest Thermal Group’s ongoing research and development in this area are not only enhancing the capabilities of current missions but are also laying the groundwork for future exploration efforts. By improving the thermal management technologies used in spacecraft, Quest is helping to enable longer, more ambitious missions, such as manned Mars missions, where robust and efficient thermal control will be critical.

Conclusion

Spacecraft multilayer insulation is a fundamental technology in aerospace engineering, providing crucial thermal protection that ensures the success and safety of missions. Through innovative design and material advancements, we are at the forefront of developing new technology that helps solve critical cryogenic fluid management challenges for long duration space exploration missions.

As we continue to push the boundaries of human knowledge and capability, the evolution of multilayer insulation for spacecraft will remain a cornerstone in our quest to explore the unknown, safeguarding both technological investments and human lives against the extreme challenges of the space environment.

New Robotic Automation Initiative Will Elevate Manufacturing Capacity and Precision

Quest Thermal Group, a world-leader in innovative thermal management solutions, announces the initiation of a robotic automated fabrication effort aimed at revolutionizing its manufacturing processes. This strategic move reflects Quest’s commitment to advancing technology, enhancing precision, and ensuring the highest quality standards while meeting the growing manufacturing needs their clients.

Quest Thermal Group Successfully Passes Rigorous Quality Audit Conducted by Blue Origin

Quest Thermal Group, a leading provider of cutting-edge thermal management solutions, proudly announces the successful completion of a comprehensive quality audit conducted by Blue Origin, a private aerospace manufacturer and spaceflight services company. This achievement highlights Quest Thermal Group’s commitment to excellence and its capability to meet the stringent standards set by industry leaders in the space exploration sector.

Humanity’s Return to the Moon: Quest Joins Forces with Lockheed Martin on Lunar Exploration Transfer Vehicles

Quest Thermal, a leading innovator in thermal management solutions, is thrilled to announce a groundbreaking collaboration with Lockheed Martin, a global aerospace and defense company, to pioneer advancements in lunar transfer vehicles. This strategic partnership aims to accelerate the development of state-of-the-art technologies crucial for the future of lunar exploration.

IMLI To Insulate NASA Near Earth Object Surveyor (NEOS) Space Telescope

Quest Thermal’s cutting-edge Integrated MultiLayer Insulation (IMLI) has been chosen by Ball Aerospace and NASA to insulate the NASA NEOS infrared space telescope. The Near-Earth Object Surveyor space telescope is designed to help advance NASA’s planetary defense efforts to discover and characterize most of the potentially hazardous asteroids and comets that come within 30 million miles of Earth’s orbit. By detecting and characterizing these celestial bodies, NEOS contributes to planetary defense and scientific research.

Quest Thermal Group Invited to Blue Origin Supplier Summit

Quest Thermal Group, a trailblazer in the field of thermal management solutions, is honored to announce its participation in the Blue Origin Supplier Summit. This invitation serves as a recognition of Quest Thermal Group’s dedication to excellence, innovation, and its pivotal role in advancing technologies crucial to the aerospace industry.

Humanity’s Return to the Moon: Quest Joins Forces with Lockheed Martin on Self-Deploying Sunshield Technology

Quest Thermal Group, a renowned leader in thermal management solutions, proudly announces its collaboration with Lockheed Martin on a groundbreaking Cryogenic Demonstration Mission. This joint venture brings together Quest Thermal Group’s expertise in cutting-edge thermal technologies and Lockheed Martin’s prowess in aerospace innovation to advance cryogenic systems for future space exploration.

Quest Showcases New MLI Electrical Grounding Technology & Vapor Cooling Methods at Space Cryogenics Workshop

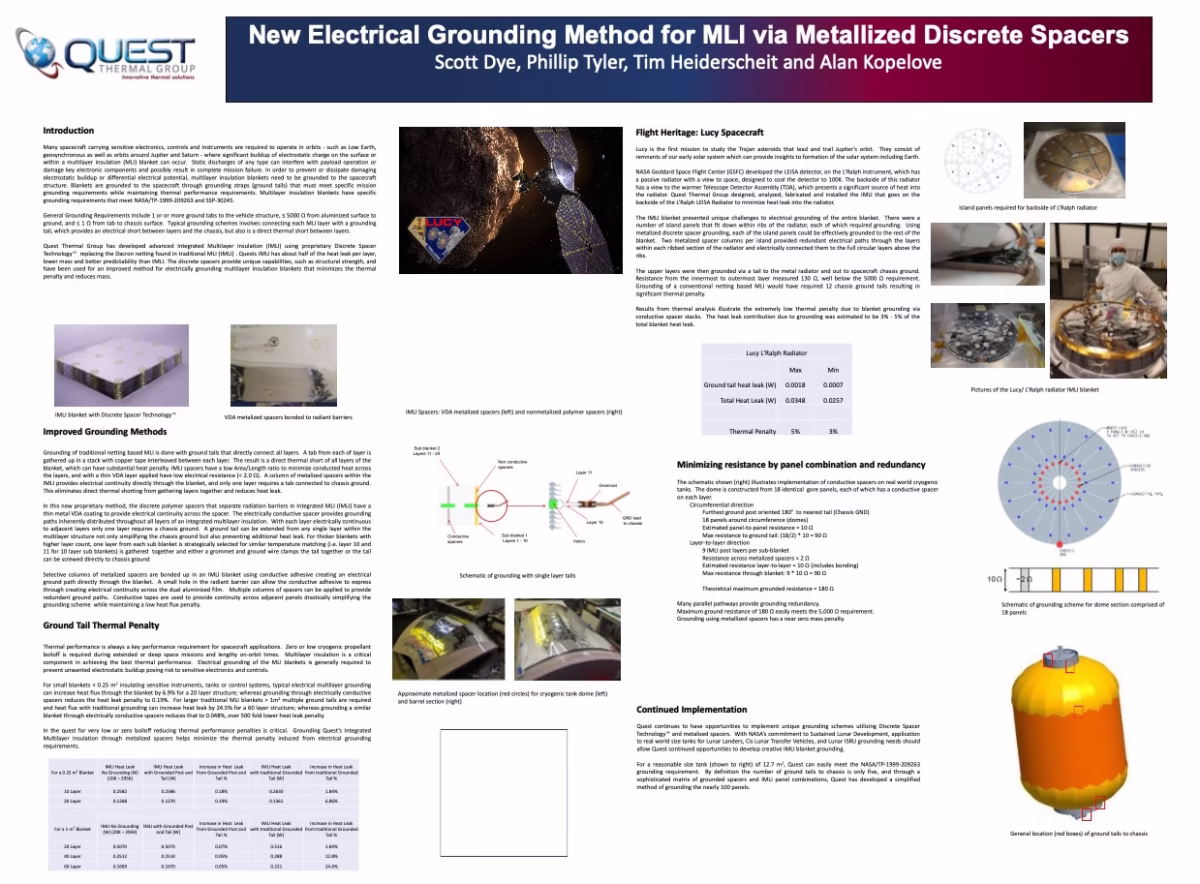

Quest Thermal Group attended the 2023 iteration of the prestigious Space Cryogenics Workshop held in Kona, Hawaii. The company presented two technical papers highlighting advancements in cryogenic thermal technologies. This engagement underscores Quest’s continued commitment to pushing the boundaries of innovation and sharing expertise with the global space exploration community.
